Cross reference listing
As a past Moore Products Sales/Engineer I would be happy to help you find replacements for Moore Products obsolete items. The following listing shows some of the items available.  I have a working relationship with both Fairchild Industries as past Product Manager  and with ControlAir as immediate Past Distributor.

Siemens
Type Moore Products Fairchild Equivalent Control Air

Regulators 41: 1/8 in FNPT:
80531P:  90-A
40: 1/4 in FNPT:
814(1-5)2: 50 SCFM 100-BA
40H:1/4 in FNPT: 814(1-5)2: 50 SCFM 700-BC
42: 1/2 in FNPT: 814(1-5)2: 50 SCFM 700-BD
42H: 1/2 in FNPT:
40(2-7)4A: 150 SCFM Call
Filter Regulator 91-HF 63: 100 psig max, 25 SCFM 335-BA
Instrument air filter 2306 FGF0021 15-150 psig 5 micron NA
Relays 6iH, 61L, 61F & 610 1:1 3015  208-12: 45 SCFM 200-BC
66BA2 Amplifying 1:2 208-22: 45 SCFM Booster 600-BB
66BA3 Amplifying 1:3 208-32: 45 SCFM 600-BC
66BA4 Amplifying 1:4 208-62: 45 SCFM NA
66BA6 Amplifying 1:6 208-102: 45 SCFM 600BD
66BR2 Reducing 2:1 208-42: 45 SCFM NA
66BR3 Reducing 3:1 208-52: 45 SCFM NA
66BR3 Reducing 4:1 208-72: 45 SCFM NA

Valve Positioner 72 Pneu Side Mounted NA CA20

E/P I/P Exp Proof 77 Elect-Pneu Transducer TFXI7800-401 595-A-N
Obsolete P/I Transducer 781P6 0-15 psig TRFX8001-01-100    P200
I/P Transducers 772R011 TRFN7800401 4-20mA/3-15psig NA
773F0111NA3 TXI7850401 4-20mA/3-15psig 595XP
Pressure Limiting 58L low Limit 91052/30242T Assembly 90-A&71H
Pressure Limiting 58H high limit 90052/30242T Assembly 90-A&71-Lo
Pressure selecting 58S High-Press. Select 91052 71-HI
Pressure selecting 58SH high-Press. Select 91052 71-HI
Pressure selecting 612 low press select 90052: 2 input 71-Lo
Pressure selecting 612 multi low press select 90052: 3,4,5,6 inputs in series NA
Proportional off-on acting Throttling Rg 0.63 psig 67-25 NC Vac-35 psig 244232:  0.5-30 psig NA
Proportional off-on acting Throttling Rg 0.63 psig 67R25 NO Vac-35 psig 244132:  0.5-30 psig NA
Proportional off-on acting Throttling Rg 0.22 psig 67-100 NC Vac-16 psig 244232:  0.5-30 psig NA
Proportional off-on acting Throttling Rg 0.22 psig 67R100 NO Vac-16 psig 244132:  0.5-30 psig NA
Snap-Acting off-on 671 NC 1-24 psig 244232:  0.5-30 psig NA
+/- Biasing 680 14232: 0.5-30 psig NA
+Biasing 681 85631P: 0.5-20 psig +bias only NA
Reversing 69 25432: 0.5-30 psig NA

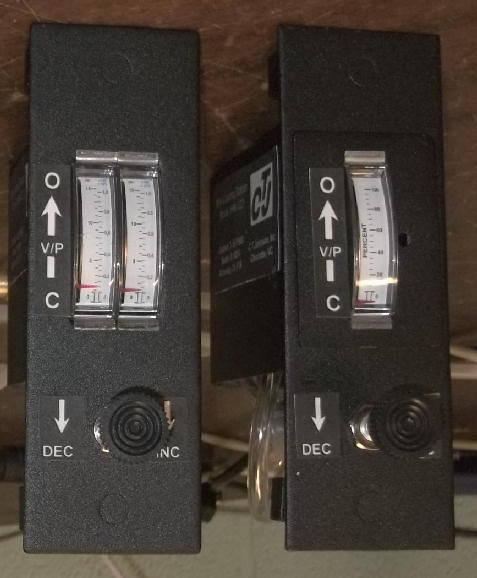

Replacement for Moore Products Co Mini Loading Station Model 521 & 522
HIK-522

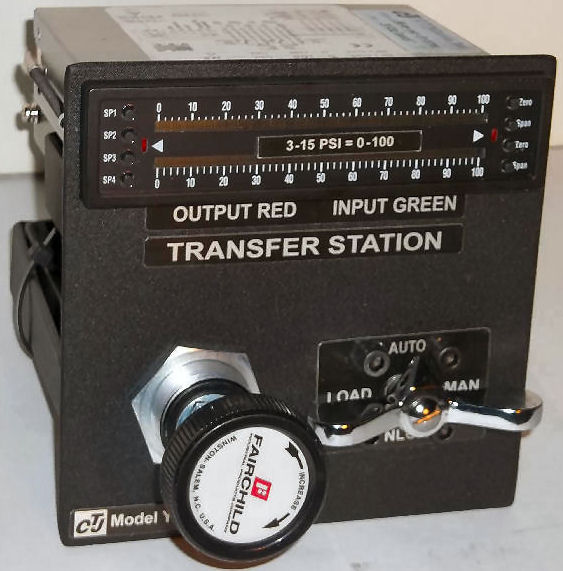

Replacements for
Moore Products
Co. 524
YK-315-6x6
YK-315-6X6
Arrowup
Replacement for
Control M/P Station Model 524
Arroedn
524A48P

Replacement for Moore Products Model 781P6 P/E Transducer
Operating in Nuclear Power Plant
YI-315
