Recently updated

for I&C/Automation firms in the Carolinas.


I am devoting several new pages to it that will have links to each firm's website: click on links in the TOP menu. I will initially base the information found on the firms web site, then it can be adjusted based on comments from those firms. The listing will carry the firm name & city with a link to the firms web site carried.  Additional information or advertisement can be provided at an additional cost per year. The initial firms will be those that have personal that belong to the ISA


Replacement forMoore Products obsolete

521K, 522K Mini Loading Stations

Production Stations are in process for first order from Duke Energy for replacing the obsolete Moore Products Co 521K (single gauge) and 522K (duplex Gauge) pneumatic Mini Loading Stations.

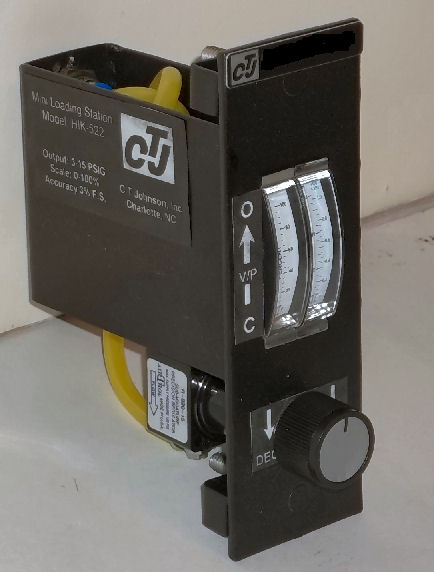

 HIK-522



The 522K (above) was used to operate a pneumatic control valve and the second gauge was assigned to indicate a remote pneumatic signal

 The 512K (single Gauge)  was used to manually operate (open/close) pneumatic control valves.

The designations for the replacement loading stations are

HIK-512 for the MPC 521K

HIK-522 for the MPC 522K



The replacement stations were contracted by Duke Energy, designed by Cliff Johnson, PE, Control Systems Engineer and assembled and sold by TRUgegra, a local integration firm in Charlotte NC

NEWS
I has 78 yrs young on
April 24 2017
And the beat goes ON!!!

Now offering sight feed bubbler bottle for
hydrodynamic level sensing  and control systems
used in water and waste treatment plants  see below
We are now a distributor for
CA Logo
The model YK-315-6X6 has been designed to replace the Moore Products obsolete model 524A48P
Nullmatic M/P Control Station.

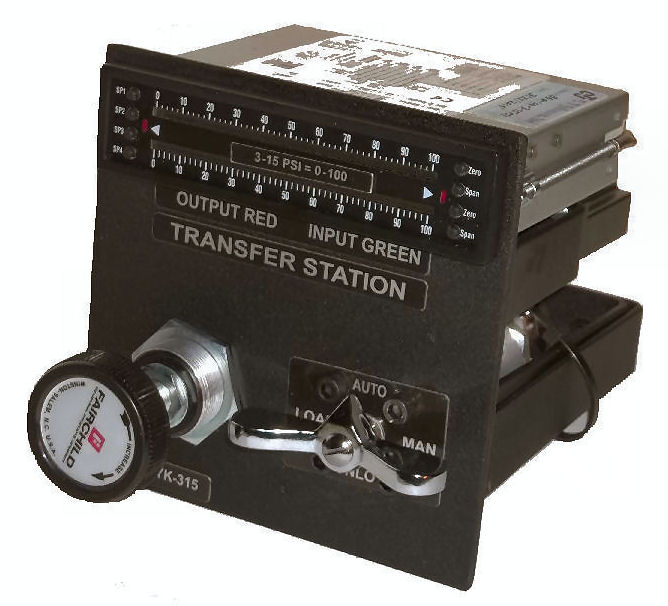

YK-315-6x6
The YK-315-6X6 is an integration of pneumatic and electronic components that are readily available and warranted for one year by the individual component manufacturer:

The model YK-315-6X6 Loading Transfer Station is a pneumatic Manual Loading Station that provides a 3-15 psig (0.206-1.03 Bar) output. It has a transfer switch on the face of the station to select ether of two modes of control: Auto or Man.

The Loading/transfer Station combines an adjustable pneumatic air regulator, a pneumatic transfer switch, (2) Pressure/current (P/I) transducers, and an electronic bar graph display that replaces the obsolete Moore Products 524A48P duplex pressure gauge.

  During both modes of control, the pneumatic output of the station's pneumatic regulator is connected to the station's output.
In Auto control, a locally adjusted bias is applied to the station input by the regulator.

 The control modes are isolated from each other so only the selected mode provides control; the other cannot override or alter the station's output.  Two pressure to current transducers convert the pneumatic signals to 4-20mA signals for displaying on the electronic bar graph read out. The bar graph displays the station input and the regulator pneumatic output at all times.
